Atohm Kit - Rafale VR1

650,0 € tax incl.

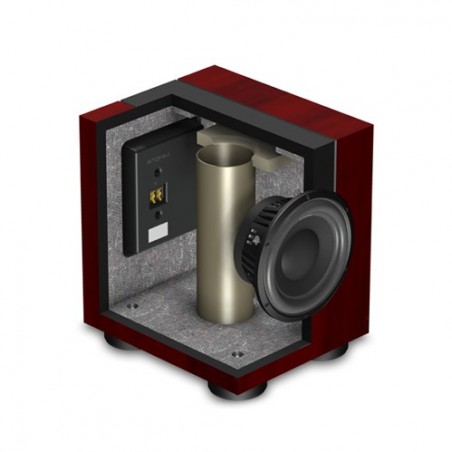

The Atohm VR Rafale VR1 kit is an active subwoofer consisting of a 23cm woofer designed to reproduce the 30 Hz-200 Hz band with a high level and low distortion rates and an ATOHM amplification module S250.

The cabinet is sold separately.

We will provide you with an assembly plan and a diagram to realize the cabinetmaking during the sending of the elements.

We can also provide you a cabinet, several finishes are available on order, do not hesitate to contact us if you want more information.

More details

Garanti un an ou garantie constructeur
Une sélection La Maison du Haut-Parleur
Possible return under conditions.
Livraison en colissimo gratuite à partir de 300€

Data sheet

Weight21 kg
Width320 mm
Height420 mm
Depth375 mm
Rated power220 W
Maximum power320 W
Frequency response32-150 Hz
Amplification moduleATOHM S250
Low level entry2x RCA
High level entry2x 4mm bananas plug / direct clamping
Cutoff frequencyadjustable from 38 to 150 Hz
Slope of filteringadjustable 12dB-24dB-LFE
Phase control0-180°
Supply voltage115 V / 230 V

More info

The VR1 Rafale kit is an active subwoofer with outstanding performance. The bass-reflex charge features a dedicated amplification of 220Weff coupled with an exceptional 23cm diameter speaker. Easily integrated into any type of installation wifi or home theater, it is the ideal complement of small compact speakers!
